Model 875-BR-044-B

Product Highlight

The Thermodynamic Principles of LPA

Most current refrigeration and air conditioning systems waste 20% to 40% of

Model LPA® 860-SS-075

860-SS-075-B | 4 to 30 GPM | Max Head 50 feet PS

Model 875-BR-044-B

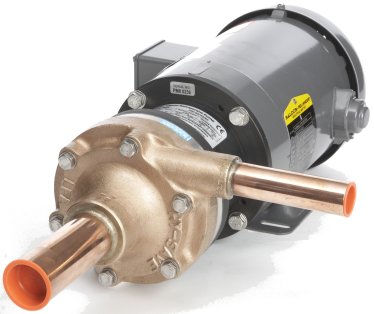

Liquid refrigerant pump

875-IND-PM8 | 8 to 40 GPM | Max Head 60 feet

  • PS 640 psi / 44.2 bar
  • PT 920 psi / 63.4 bar
  • TS Min -22°F / -30°C
  • TS Max 160°F / +72°C
  • Inlet ODF Copper 1-5/8″
  • Outlet ODF Copper 1-1/8″
  • Motor Power .75hp (60Hz)
  • Voltage 208-230 /460
  • Ampere 2.4-2.2 / 1.1
  • Phase 3PH
  • Frequency 50 / 60Hz
  • Thermal Overload





REFRIGERANTS: (Fluid Type /GAS GROUP 1&2 /UL Classified)

Co2 R-290 R-134a R-401a R-401b R-401c R-402a R-402b R-404A R-407A R407b R-407c R-408a R-409a R-410A R-500 R-507

OUTDOOR PROTECTION IP54 | Altitude 2000M | Corrosive & Polluting Substance Class 4C2 | Vibration & Shock Class 4S2 | Presence of Dust Class 4S2 | Corrosion Protection Level ClassIP43B

MAINTENANCE: Maintenance free, no service required.

Manufactured to: DIR 97/23/EC “CE” CAT A1 / UL Recognized \ Shipping Weight 55 lb’s | Dimensions L 25″ x W 16″ x H 16″ \ Component Weight 50 lb | Dimensions L 17″ x W 14″ x H 10″

Mechanical Life Wet End Assembly +20 years | Mechanical life Impeller +100,000 continuous hrs | Mechanical Endurance +300,000 cycles

2 Responses to “ Model 875-BR-044-B ”

  1. user says:

    Do you have Arctic motors rated at -40F?

  2. Engineering says:

    Yes, Arctic -40F motors are available on request.
