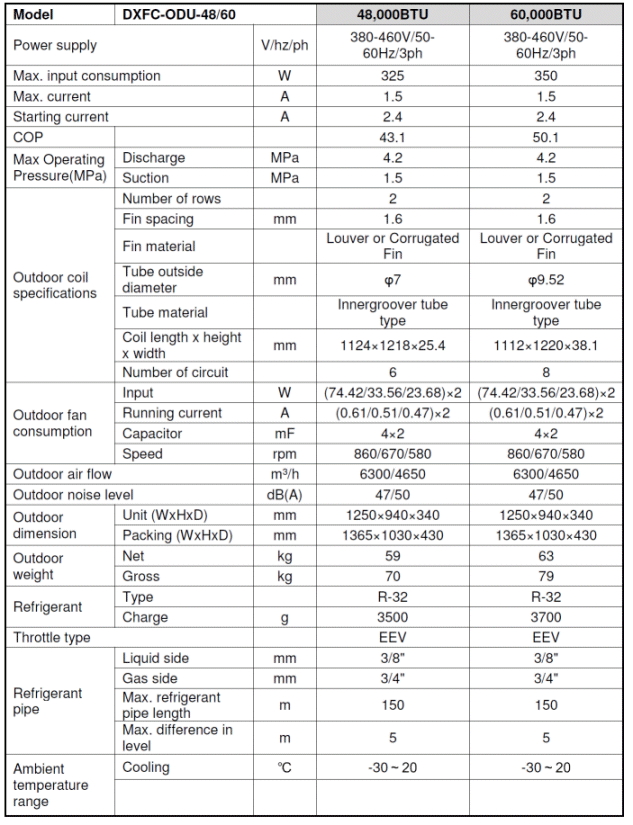

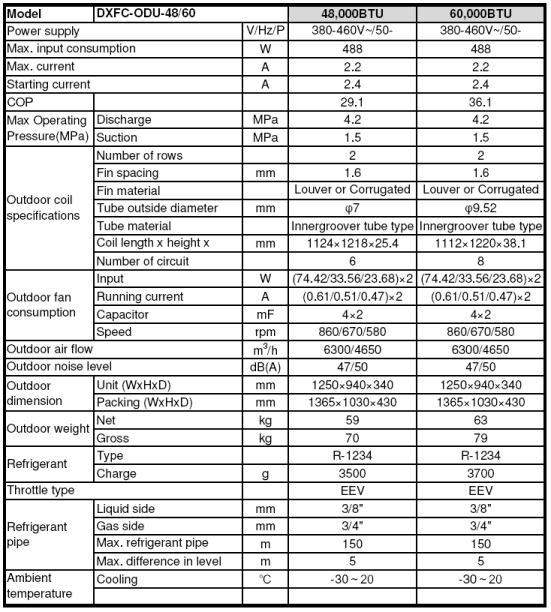

DXFC Outdoor Condensing Unit 48,000-60,000 Btu’s

Product Highlight

The Thermodynamic Principles of LPA

Most current refrigeration and air conditioning systems waste 20% to 40% of

Model LPA® 860-SS-075

860-SS-075-B | 4 to 30 GPM | Max Head 50 feet PS

DXFC Outdoor Condensing Unit 48,000-60,000 Btu’s



60,000 Btu’s | Power Consumption 0.48kW | COP 36:1

380-460V 3 phase 50/60hz

Refrigerant R-1234ze

Applications include data centers, commercial and office server rooms, residential and other DX free cooling applications when outdoor temperatures are cooler. For the natural refrigerant enthusiast, soon to launch, a range of Nh3 (Ammonia) split air conditioners  will be available towards the end of the year. Thanks to their newly patent pending reliable method of cooling, these air conditioners come with  7 years of warranty.


3 Responses to “ DXFC Outdoor Condensing Unit 48,000-60,000 Btu’s ”

  1. […] DXFC – Split Air Conditioner 48,000 to 60,000 Btu’s for data centers, offices and other areas of intense heat loads View data sheet. […]

  2. FJ says:

    when are these becoming available?

  3. admin says:

    FJ, these are available albeit 26 weeks lead time.
