Model 820-BR-044-EA

Product Highlight

The Thermodynamic Principles of LPA

Most current refrigeration and air conditioning systems waste 20% to 40% of

Model LPA® 860-SS-075

860-SS-075-B | 4 to 30 GPM | Max Head 50 feet PS

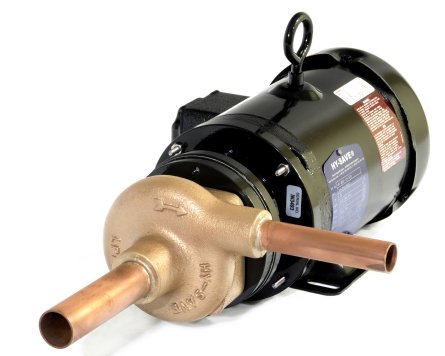

Model 820-BR-044-EA

820-BR-044-EA

820-IND | 2 to 10 GPM | Head 32 feet

  • PS 640 psi / 44.2 bar
  • PT 920 psi / 63.4 bar
  • TS Min -22°F / -30°C
  • TS Max 160°F / +72°C
  • Motor Power .20hp
  • Inlet ODF Copper 1-1/8″
  • Outlet ODF Copper 7/8″
  • Voltage 208-230 /460
  • Ampere 1.1-1 / 0.5
  • Phase 3PH
  • Frequency 50 / 60Hz
  • Thermal Overload





REFRIGERANTS: (Fluid Type /GAS GROUP 1&2 /UL Classified)

R-290 R-134a R-401a R-401b R-401c R-402a R-402b R-404A R-407A R407b R-407c R-408a R-409a R-410A R-500 R-507

OUTDOOR PROTECTION IP54 | Altitude 2000M | Corrosive & Polluting Substance Class 4C2 | Vibration & Shock Class 4S2 | Presence of Dust Class 4S2 | Corrosion Protection Level ClassIP43B

MAINTENANCE: Maintenance free, no service required.

Manufactured to: DIR 97/23/EC “CE” CAT A1 / UL Recognized \ Shipping Weight 55 lb’s | Dimensions L25″ x W16″ x H16″ \ Component Weight 42lb | Dimensions L17″ x W14″ x H10″

Mechanical Life Wet End Assembly +20 years | Mechanical life Impeller +100,000 continuous hrs | Mechanical Endurance +300,000 cycles

3 Responses to “ Model 820-BR-044-EA ”

  1. Ben says:

    This is Ben from Orlando. I bought this liquid pump from HY-SAVE Technology in Tampa, Florida a while back, and wanted to let you know how it turned out. I intended to use the LPA pump for slightly different purposes than it is typically used. Eventually, I found a way to accomplish my goal and the liquid pump is working perfectly. Thank you for all of your help regarding the purchase of this product. I am very pleased with it.

  2. Henry says:

    I am working on a cascade recirculation type system without expansion valves. I am intending to circulate R134a at a working fluid temperature of 55F to the evaporators and allow the refrigerant to boil off en route back to the cascade via thermosyphon. Would your LPA pump suit this kind of application?

  3. Henry, you have found the right pump application exactly suited for your application. Please contact us for further information. We will be happy to select and size the correct LPA for your application.
