LPA®-833-DS-075

Product Highlight

LPA®-833-DS-075

In development, Model 833-DS (Dual Stage) SS LPA® pump. The design operating

Facts about the LPA® Pump

LPA® (Liquid Pressure Amplification) | Co2 | R290 | NH3 |HFO |

LPA®-833-DS-075

available this fall

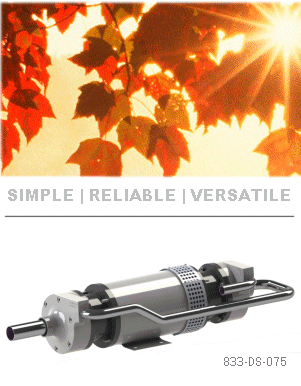

833-DS-075

In development, Model 833-DS (Dual Stage) SS LPA® pump. The design operating pressure has been awarded PS 75 bar.

Developed with minimal power consumption and net positive suction head considerations in mind, the new 833-DS-075 meets that criteria.

  • Flow 2 to 20 GPM
  • Max. Head 80 feet (60hz)
  • Power consumption at 80 feet head 0.33 hp
  • 208-230/460V 3 phase
  • Inlet Tube Size [ 1-3/8"]
  • Outlet Tube Size  [7/8" ]
  • Thermal overload
  • VSD compatible (optional)
  • NPSH 12″ to 18″



2 Responses to “ LPA®-833-DS-075 ”

  1. Shim says:

    do you have a flow curve for this model?

  2. Engineering says:

    At the moment, double up on the existing flow curve head, flow rate will remain same.
