Model LDS-860-2-340

Product Highlight

The Thermodynamic Principles of LPA

Most current refrigeration and air conditioning systems waste 20% to 40% of

Co2 Liquid Refrigerant Pump & LPA Economizer

The LPA® pump is an open-drive sealed unit with important design features:

DXFC™ Wall Mounted Split AC unit with Outdoor Condenser

[Public Disclosure-23rd October 2016] DXFC, DX free cooling the alternative to running

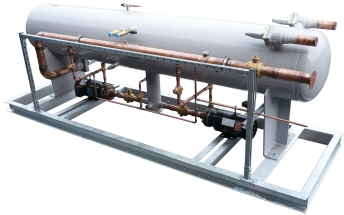

Model LDS-860-2-340

Specifications Overview: Manufactured in accordance with DIR.97/23/EC CAT A1Receiver Volume at 80% 340 Litres (90 gallons) Shell Dia 406mm (16″) Length o/caps 2845mm (112″) Features: Inlet 2 x 2-1/8″ HERL Valves LPA Downleg 1 x 4″ Dia. Steel Bypass Line 1 x 2-1/8″ Pressure Relief 1 x 1/2″ NPT c/w Dual Bursting Disc Relief Low level Alarm – 110/240V Opticle LPA Protection Dual PP3 V2 1.07 50/60hz Minimum flow 1 x 1/2″ rotalock valve Sight Glasses 3 x 1″ BE sight glass connections
