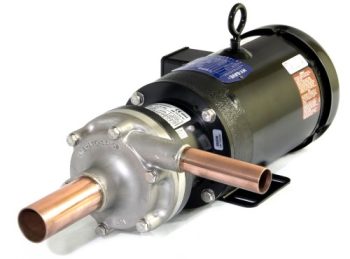

LPA®-860-SS-050-STD-EA

860-SS-050-EA

860-SS-050-STD-EA | 4 to 30 GPM | Head 50 feet

  • PS 725 psi / 50 bar
  • PT 1,036 psi / 72 bar
  • TS Min -22°F / -30°C
  • TS Max 160°F / +72°C
  • Inlet ODF 1-5/8″
  • Outlet ODF 7/8″
  • Motor Power .6hp (60Hz)
  • Voltage 208-230 /460
  • Ampere 2.2-2 / 1
  • Phase 3PH
  • Frequency 50 / 60Hz
  • Thermal Overload

HYSAVE PED UKCA SS Version

REFRIGERANTS: (Fluid Type /GAS GROUP 1&2 /UL Classified)

Co2 R-290 R-134a R-401a R-401b R-401c R-402a R-402b R-404A R-407A R407b R-407c R-408a R-409a R-410A R-500 R-507 R-32 R1234ze

OUTDOOR PROTECTION IP54 | Altitude 2000M | Corrosive & Polluting Substance Class 4C2 | Vibration & Shock Class 4S2 | Presence of Dust Class 4S2 | Corrosion Protection Level Class IP43 B

MAINTENANCE: Maintenance free, no service required.

Manufactured to: DIR 2014/68/EU “CE” CAT A2 \ UL Recognized \ Shipping Weight 55 lb’s | Dimensions L 25″ x W 16″ x H 16″ \ Component Weight 50 lb | Dimensions L 17″ x W 14″ x H 10″

Mechanical Life Wet End Assembly +20 years | Mechanical life Impeller +200,000 continuous hrs | Mechanical Endurance +300,000 cycles
