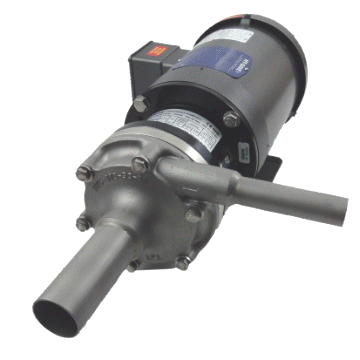

LPA® 875-SS-060-VSD

Nicknamed the work dog, now available with a high strength stainless steel housing to meet with pressures on demand. Built to stand up under heavy loads, LPA (Liquid Pressure Amplification) pumps, are equipped with built-in thermostatic overload protection. Under adverse conditions, the magnetic drive acts as a clutch to eliminate overloading and motor burnouts.

The 875-SS-060-VSD (Variable Speed Drive) is now available with a high frequency drive compatible motor designed for continuous use at 65hz if required.

  •  PS 870 psi / 60 bar
  •  PT 1,244 psi / 86 bar
  •  TS Min -22°F / -30°C
  •  TS Max 160°F / +85°C
  •  Inlet, Sch. 10, 42.16mm, DN32, NPS 1-1/4″
  •  Outlet, Sch 10, 26.67mm,  DN20, NPS 3/4″
  •  Motor Power .75 or 1 hp
  •  Voltage 208-230 /380-460
  •  Ampere 2.4-2.2 / 1.1
  •  Phase 3PH
  •  Frequency 50 / 60Hz
  •  Internal protection, Thermostat
